| MR-J5-A-RJ | MR-J5-G-RJ | MR-J5W-G | |
| MR-J5-A4-RJ | MR-J5-G4-RJ |

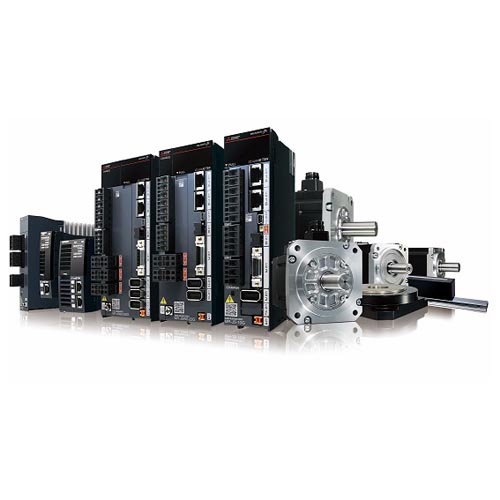

Cерия MR-J5 является самой последней разработкой Mitsubishi Electric в области управления движением. В этой серии реализованы самые современные функции управления через сеть реального времени CC-Link IE TSN, а также возможность управлять несколькими (двумя или тремя) моторами одним сервоусилителем. Есть возможность адаптации сервоусилителя под мотор с меньшей мощностью.
| MR-J5-A-RJ |
|||||
| Наименование | Номинальная мощность двигателя, Вт | Габаритные размеры (ШхВхГ), мм | Вес, кг | Совместимые серводвигатели | |
|---|---|---|---|---|---|
| MR-J5-10A-RJ | 100 | 40х172х135 | 0,8 |
HK-KT053W / HK-KT13W / HK-KT13UW / HK-MT053W / HK-MT13W / HK-MT053VW / HK-MT13VW |
|
| MR-J5-20A-RJ | 200 | 40х172х135 | 0,8 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT23UW / HK-KT434W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW LM-U2PAB-05M-0SS0 / LM-U2PBB-07M-1SS0 |
|
| MR-J5-40A-RJ | 400 | 40х172х135 | 0,8 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT43W / HK-KT23UW / HK-KT43UW / HK-KT434W / HK-KT634W / HK-KT7M34W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W / HK-MT43W / HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW / HK-ST524W LM-U2PAD-10M-0SS0 / LM-U2PAF-15M-0SS0 / LM-K2P1A-01M-2SS1 / LM-AJP1B-07K-JSS0 / LM-AJP2B-12S-JSS0 / LM-AJP3B-17N-JSS0 / LM-AJP4B-22M-JSS0 / LM-AUP3A-03V-JSS0 / LM-AUP3B-06V-JSS0 / LM-AUP3C-09V-JSS0 / LM-AUP3D-11R-JSS0 |
|
| MR-J5-60A-RJ | 600 | 40х172х170 | 1 |
HK-KT1M3W / HK-KT23W / HK-KT43W / HK-KT23UW / HK-KT43UW / HK-KT63UW / HK-KT434W / HK-KT634W / HK-KT7M34W / HK-KT1034W / HK-MT43VW / HK-ST52W / HK-ST524W / HK-ST1024W LM-U2PBD-15M-1SS0 |
|
| MR-J5-70A-RJ | 750 | 60х175х185 | 1,4 |
HK-KT43W / HK-KT63W / HK-KT43UW / HK-KT7M3W / HK-KT63UW / HK-KT7M3UW / HK-KT634W / HK-KT7M34W / HK-KT1034W / HK-KT1534W / HK-MT43W / HK-MT63W / HK-MT7M3W / HK-MT43VW / HK-MT63VW / HK-MT7M3VW / HK-ST52W / HK-ST7M2UW / HK-ST524W / HK-ST1024W LM-H3P3B-24P-CSS0 / LM-H3P3C-36P-CSS0 / LM-H3P7A-24P-ASS0 / LM-U2PBF-22M-1SS0 / LM-K2P2A-02M-1SS1 / LM-AJP1D-14K-JSS0 / LM-AJP2D-23T-JSS0 / LM-AJP3D-35R-JSS0 / LM-AJP4D-45N-JSS0 / LM-AUP4A-04R-JSS0 / LM-AUP4B-09R-JSS0 / LM-AUP4C-13P-JSS0 / LM-AUP4D-18M-JSS0 |
|
| MR-J5-100A-RJ | 1000 | 60х172х185 | 1,4 |
HK-KT63W / HK-KT7M3W / HK-KT103W / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT1034W / HK-KT1534W / HK-KT2034W / HK-KT2024W / HK-MT103W / HK-ST52W / HK-ST102W / HK-ST7M2UW / HK-ST1024W / HK-ST1724W / HK-ST2024AW / HK-RT103W |
|
| MR-J5-200A-RJ | 2000 | 90х172х195 | 2,2 | HK-KT63W / HK-KT7M3W / HK-KT103W / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT153W / HK-KT203W / HK-KT202W / HK-KT1534W / HK-KT2034W / HK-KT2024W | |
| MR-J5-350A-RJ | 3500 | 90х172х195 | 2,2 |
HK-KT103W / HK-KT103UW / HK-KT153W / HK-KT203W / HK-KT202W / HK-KT2034W / HK-KT2024W / HK-MT103VW / HK-ST102W /HK-ST172W / HK-ST202AW / HK-ST302W / HK-ST353W / HK-ST172UW / HK-ST202W / HK-ST352W / HK-ST1724W / HK-ST2024AW / HK-ST3024W /HK-ST2024W / HK-ST3524W / HK-ST5024W / HK-RT203W / HK-RT353W LM-H3P7D-96P-ASS0 / LM-U2P2C-60M-2SS0 / LM-K2P2C-07M-1SS1 / LM-K2P3C-14M-1SS1 |
|
| MR-J5-500A-RJ | 5000 | 105х250х200 | 3,7 |
HK-ST302W / HK-ST353W / HK-ST503W / HK-ST352W / HK-ST502W / HK-ST5024W / HK-ST7024W / HK-RT153W / HK-RT353W / HK-RT503W LM-U2P2D-80M-2SS0 / LM-FP2D-12M-1SS0 / LM-FP4B-12M-1SS0 / LM-K2P2E-12M-1SS1 / LM-K2P3E-24M-1SS1 |
|
| MR-J5-700A-RJ | 7000 | 170х300х200 | 6,2 |
HK-RT503W /HK-RT703W LM-FP2F-18M-1SS0 / LM-FP4D-24M-1SS0 |
|
| MR-J5-A4-RJ |
|||||
| Наименование | Номинальная мощность двигателя, Вт | Габаритные размеры (ШхВхГ), мм | Вес, кг | Совместимые серводвигатели | |
|---|---|---|---|---|---|
| MR-J5-60A4-RJ | 600 | 40х172х195 | 1,6 | HK-KT053W* / HK-KT13W* / HK-KT1M3W* / HK-KT434W* / HK-KT634UW / HK-ST524W** | |
| MR-J5-100A4-RJ | 1000 | 60х172х195 | 1,6 |
HK-KT053W* / HK-KT13W* / HK-KT1M3W* / HK-KT434W* / HK-KT634W* / HK-KT7M34W* / HK-KT1034W* / HK-KT634UW / HK-KT1034UW / HK-ST524W** / HK-ST1024W** / HK-RT1034W |
|
| MR-J5-200A4-RJ | 2000 | 90х172х195 | 2,2 | HK-KT434W* / HK-KT634W* / HK-KT7M34W* / HK-KT1034W* / HK-KT634UW / HK-KT1034UW / HK-KT1534W* / HK-KT2034W* / HK-KT2024W* / HK-ST524W** / HK-ST1024W** / HK-ST1724W** / HK-ST2024AW** / HK-ST2024W / HK-RT1034W /HK-RT1534W / HK-RT2034W | |
| MR-J5-350A4-RJ | 3500 | 90х172х195 | 2,3 |
HK-KT634W* / HK-KT7M34W* / HK-KT1034W* / HK-KT1034UW / HK-KT1534W* / HK-KT2034W* / HK-KT2024W* / HK-ST524W** / HK-ST1024W** / HK-ST1724W** / HK-ST2024AW** / HK-ST2024W** / HK-RT2034W / HK-RT3534W |
|
| MR-J5-G-RJ |
|||||
| Наименование | Номинальная мощность двигателя, Вт | Габаритные размеры (ШхВхГ), мм | Вес, кг | Совместимые серводвигатели | |
|---|---|---|---|---|---|
| MR-J5-10G-RJ | 100 | 40х172х135 | 0,8 |
HK-KT053W / HK-KT13W / HK-KT13UW / HK-MT053W / HK-MT13W / HK-MT053VW / HK-MT13VW |
|
| MR-J5-20G-RJ | 200 | 40х172х135 | 0,8 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT23UW / HK-KT434W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW LM-U2PAB-05M-0SS0 / LM-U2PBB-07M-1SS0 |
|
| MR-J5-40G-RJ | 400 | 40х172х135 | 0,8 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT43W / HK-KT23UW / HK-KT43UW / HK-KT434W / HK-KT634W / HK-KT7M34W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W / HK-MT43W / HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW / HK-ST524W LM-U2PAD-10M-0SS0 / LM-U2PAF-15M-0SS0 / LM-K2P1A-01M-2SS1 / LM-AJP1B-07K-JSS0 / LM-AJP2B-12S-JSS0 / LM-AJP3B-17N-JSS0 / LM-AJP4B-22M-JSS0 / LM-AUP3A-03V-JSS0 / LM-AUP3B-06V-JSS0 / LM-AUP3C-09V-JSS0 / LM-AUP3D-11R-JSS0 |
|
| MR-J5-60G-RJ | 600 | 40х172х170 | 1 |
HK-KT1M3W / HK-KT23W / HK-KT43W / HK-KT23UW / HK-KT43UW / HK-KT63UW / HK-KT434W / HK-KT634W / HK-KT7M34W / HK-KT1034W / HK-MT43VW / HK-ST52W / HK-ST524W / HK-ST1024W LM-U2PBD-15M-1SS0 |
|
| MR-J5-70G-RJ | 750 | 60х175х185 | 1,4 |
HK-KT43W / HK-KT63W / HK-KT43UW / HK-KT7M3W / HK-KT63UW / HK-KT7M3UW / HK-KT634W / HK-KT7M34W / HK-KT1034W / HK-KT1534W / HK-MT43W / HK-MT63W / HK-MT7M3W / HK-MT43VW / HK-MT63VW / HK-MT7M3VW / HK-ST52W / HK-ST7M2UW / HK-ST524W / HK-ST1024W LM-H3P3B-24P-CSS0 / LM-H3P3C-36P-CSS0 / LM-H3P7A-24P-ASS0 / LM-U2PBF-22M-1SS0 / LM-K2P2A-02M-1SS1 / LM-AJP1D-14K-JSS0 / LM-AJP2D-23T-JSS0 / LM-AJP3D-35R-JSS0 / LM-AJP4D-45N-JSS0 / LM-AUP4A-04R-JSS0 / LM-AUP4B-09R-JSS0 / LM-AUP4C-13P-JSS0 / LM-AUP4D-18M-JSS0 |
|
| MR-J5-100G-RJ | 1000 | 60х172х185 | 1,4 |
HK-KT63W / HK-KT7M3W / HK-KT103W / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT1034W / HK-KT1534W / HK-KT2034W / HK-KT2024W / HK-MT103W / HK-ST52W / HK-ST102W / HK-ST7M2UW / HK-ST1024W / HK-ST1724W / HK-ST2024AW / HK-RT103W |
|
| MR-J5-200G-RJ | 2000 | 90х172х195 | 2,2 | HK-KT63W / HK-KT7M3W / HK-KT103W / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT153W / HK-KT203W / HK-KT202W / HK-KT1534W / HK-KT2034W / HK-KT2024W | |
| MR-J5-350G-RJ | 3500 | 90х172х195 | 2,2 |
HK-KT103W / HK-KT103UW / HK-KT153W / HK-KT203W / HK-KT202W / HK-KT2034W / HK-KT2024W / HK-MT103VW / HK-ST102W /HK-ST172W / HK-ST202AW / HK-ST302W / HK-ST353W / HK-ST172UW / HK-ST202W / HK-ST352W / HK-ST1724W / HK-ST2024AW / HK-ST3024W /HK-ST2024W / HK-ST3524W / HK-ST5024W / HK-RT203W / HK-RT353W LM-H3P7D-96P-ASS0 / LM-U2P2C-60M-2SS0 / LM-K2P2C-07M-1SS1 / LM-K2P3C-14M-1SS1 |
|
| MR-J5-G4-RJ |
|||||
| Наименование | Номинальная мощность двигателя, Вт | Габаритные размеры (ШхВхГ), мм | Вес, кг | Совместимые серводвигатели | |
|---|---|---|---|---|---|
| MR-J5-60G4-RJ | 600 | 60х172х195 | 1,6 | HK-KT053W* / HK-KT13W* / HK-KT1M3W* / HK-KT434W* / HK-KT634UW / HK-ST524W** | |
| MR-J5-100G4-RJ | 1000 | 60х172х195 | 1,6 | HK-KT053W* / HK-KT13W* / HK-KT1M3W* / HK-KT434W* / HK-KT634W* / HK-KT7M34W* / HK-KT1034W* / HK-KT634UW / HK-KT1034UW / HK-ST524W** / HK-ST1024W** / HK-RT1034W | |
| MR-J5-200G4-RJ | 2000 | 90х172х195 | 2,2 | HK-KT434W* / HK-KT634W* / HK-KT7M34W* / HK-KT1034W* / HK-KT634UW / HK-KT1034UW / HK-KT1534W* / HK-KT2034W* / HK-KT2024W* / HK-ST524W** / HK-ST1024W** / HK-ST1724W** / HK-ST2024AW** / HK-ST2024W / HK-RT1034W /HK-RT1534W / HK-RT2034W | |
| MR-J5-350G4-RJ | 3500 | 90х172х195 | 2,3 | HK-KT634W* / HK-KT7M34W* / HK-KT1034W* / HK-KT1034UW / HK-KT1534W* / HK-KT2034W* / HK-KT2024W* / HK-ST524W** / HK-ST1024W** / HK-ST1724W** / HK-ST2024AW** / HK-ST2024W** / HK-RT2034W / HK-RT3534W | |
| MR-J5W-G | |||||
| Наименование | Номинальная мощность двигателя, Вт | Габаритные размеры (ШхВхГ), мм | Вес, кг | Совместимые серводвигатели | |
|---|---|---|---|---|---|
| MR-J5W2-22G | 200 | 60х172х195 | 1,5 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT23UW / HK-KT434W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W / HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW / HK-ST524W LM-U2PAB-05M-0SS0 / LM-U2PBB-07M-1SS0 / LM-K2P1A-01M-2SS1 |
|
| MR-J5W2-44G | 400 | 60х172х195 | 1,5 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT43W / HK-KT23UW / HK-KT43UW / HK-KT434W / HK-KT634W / HK-KT7M34W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W / HK-MT43W / HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW / HK-ST52W / HK-ST7M2UW / HK-ST524W / HK-ST1024W / LM-H3P2A-07P-BSS0 / LM-H3P3A-12P-CSS0 / LM-U2PAB-05M-0SS0 / LM-U2PAD-10M-0SS0 / LM-U2PAF-15M-0SS0 / LM-U2PBB-07M-1SS0 / LM-K2P1A-01M-2SS1 / LM-AJP1B-07K-JSS0 / LM-AJP2B-12S-JSS0 / LM-AJP3B-17N-JSS0 / LM-AJP4B-22M-JSS0 |
|
| MR-J5W2-77G | 750 | 85х172х195 | 1,9 | HK-KT43W / HK-KT63W / HK-KT43UW / HK-KT7M3W / HK-KT63UW / HK-KT7M3UW / HK-KT634W / HK-KT7M34W / HK-KT1034W / HK-KT1534W / HK-MT43W / HK-MT63W / HK-MT7M3W / HK-MT43VW / HK-MT63VW / HK-MT7M3VW / HK-ST52W / HK-ST7M2UW / HK-ST524W / HK-ST1024W / LM-H3P2A-07P-BSS0 / LM-H3P3A-12P-CSS0 / LM-H3P3B-24P-CSS0 / LM-H3P3C-36P-CSS0 / LM-H3P7A-24P-ASS0 / LM-U2PAD-10M-0SS0 / LM-U2PAF-15M-0SS0 / LM-U2PBD-15M-1SS0 / LM-U2PBF-22M-1SS0 / LM-K2P1A-01M-2SS1 / LM-K2P2A-02M-1SS1 / LM-AJP1B-07K-JSS0 / LM-AJP1D-14K-JSS0 / LM-AJP2B-12S-JSS0 / LM-AJP2D-23T-JSS0 / LM-AJP3B-17N-JSS0 / LM-AJP3D-35R-JSS0 / LM-AJP4B-22M-JSS0 / LM-AJP4D-45N-JSS0 | |
| MR-J5W2-1010G | 1000 | 85х172х195 | 1,9 | HK-KT43W / HK-KT63W / HK-KT43UW / HK-KT7M3W / HK-KT103W / HK-KT63UW / HK-KT7M3UW / HK-KT103UW / HK-KT634W / HK-KT7M34W / HK-KT1034W / HK-KT1534W / HK-KT2034W / HK-KT2024W / HK-MT43W / HK-MT63W / HK-MT7M3W / HK-MT103W / HK-MT43VW / HK-MT63VW / HK-MT7M3VW / HK-ST52W / HK-ST102W / HK-ST7M2UW /HK-ST1024W / HK-ST1724W / HK-ST2024AW / LM-H3P2A-07P-BSS0 / LM-H3P3A-12P-CSS0 / LM-H3P3B-24P-CSS0 / LM-H3P3C-36P-CSS0 / LM-H3P7A-24P-ASS0 / LM-U2PAD-10M-0SS0 / LM-U2PAF-15M-0SS0 / LM-U2PBD-15M-1SS0 / LM-U2PBF-22M-1SS0 / LM-K2P1A-01M-2SS1 / LM-K2P2A-02M-1SS1 / LM-AJP1B-07K-JSS0 / LM-AJP1D-14K-JSS0 / LM-AJP2B-12S-JSS0 / LM-AJP2D-23T-JSS0 / LM-AJP3B-17N-JSS0 / LM-AJP3D-35R-JSS0 / LM-AJP4B-22M-JSS0 / LM-AJP4D-45N-JSS0 | |
| MR-J5W3-222G | 200 | 75х172х195 | 1,8 | HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT23UW / HK-KT434W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W / HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW / LM-U2PAB-05M-0SS0 / LM-U2PBB-07M-1SS0 | |
| MR-J5W3-444G | 400 | 75х172х195 | 1,8 |
HK-KT053W / HK-KT13W / HK-KT1M3W / HK-KT13UW / HK-KT23W / HK-KT43W / HK-KT23UW / HK-KT43UW / HK-KT434W / HK-KT634W / HK-KT7M34W / HK-MT053W / HK-MT13W / HK-MT1M3W / HK-MT23W / HK-MT43W / HK-MT053VW / HK-MT13VW / HK-MT1M3VW / HK-MT23VW / HK-ST524W / LM-H3P2A-07P-BSS0 / LM-H3P3A-12P-CSS0 / LM-U2PAB-05M-0SS0 / LM-U2PAD-10M-0SS0 / LM-U2PAF-15M-0SS0 / LM-U2PBB-07M-1SS0 / LM-K2P1A-01M-2SS1 / LM-AJP1B-07K-JSS0 / LM-AJP2B-12S-JSS0 / LM-AJP3B-17N-JSS0 / LM-AJP4B-22M-JSS0 |
|
* Используются серводвигатели, изготовленные в сентябре 2020 года или позднее. В противном случае сработает сигнал тревоги.
** Используются серводвигатели, изготовленные в декабре 2020 года или позднее. В противном случае сработает сигнал тревоги.
Документация:
Технический каталог - MR-J5
